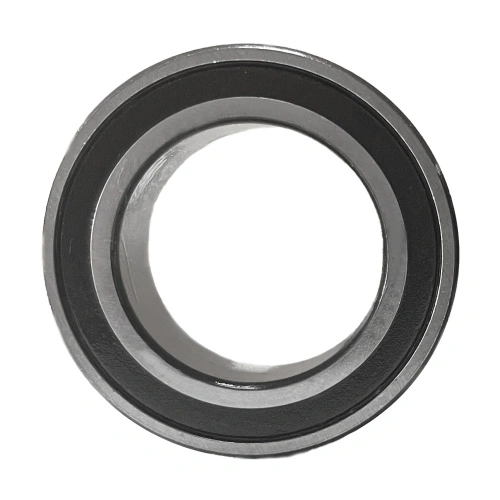

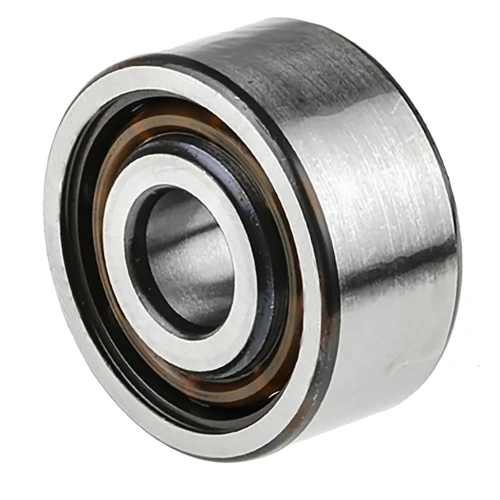

Double Row Angular Contact Ball Bearing 305264 D

Get Latest Price

Payment Type:
Min. Order:

Contact Now

Product Description

Product Attributes

Packaging & Delivery

Product Description

Product Attributes

Packaging & Delivery



Product Description

Double Row Angular Contact Ball Bearings, with seals or shields, correspond to a pair of single row Angular Contact Ball Bearings in a back-to-back arrangement, while requiring less axial space. Depending on the sealing execution, they can operate at high speeds and are more suitable than deep groove ball bearings for supporting large axial forces in both directions.

3000 A

Principal dimensions			Basic load ratings		Speed ratings		Mass	Bearing No.
			dynamic	static	Reference speed	Limiting speed
d[mm]	D[mm]	B[mm]	C[kN]	C0[kN]	[r/min]	[r/min]	kg
10	30	14	6.849	3.87	23400	21600	0.051	3200 A-2ZTN9/MT33
10	30	14	6.849	3.87	23400	21600	0.051	3200 ATN9
10	30	14	6.849	3.87		15300	0.051	3200 A-2RS1TN9/MT33
12	32	15.9	9.09	5.04	21600	19800	0.058	3201 A-2ZTN9/MT33
12	32	15.9	9.09	5.04	21600	19800	0.058	3201 ATN9
12	32	15.9	9.09	5.04		13500	0.058	3201 A-2RS1TN9/MT33
15	35	15.9	10.08	6.12	19800	16200	0.066	3202 A-2ZTN9/MT33
15	35	15.9	10.08	6.12	19800	16200	0.066	3202 ATN9
15	35	15.9	10.08	6.12		12600	0.066	3202 A-2RS1TN9/MT33
15	42	19	13.59	8.37	16200	14400	0.13	3302 A-2Z
15	42	19	13.59	8.37	16200	14400	0.13	3302 A-2ZTN9/MT33
15	42	19	13.59	8.37	16200	14400	0.13	3302 ATN9
15	42	19	13.59	8.37		10800	0.13	3302 A-2RS1
15	42	19	13.59	8.37		10800	0.13	3302 A-2RS1TN9/MT33
17	40	17.5	12.87	7.92	17100	14400	0.096	3203 A-2ZTN9/MT33
17	40	17.5	12.87	7.92	17100	14400	0.096	3203 ATN9
17	40	17.5	12.87	7.92		10800	0.096	3203 A-2RS1TN9/MT33
17	47	22.2	19.44	11.43	15300	12600	0.18	3303 A-2Z
17	47	22.2	19.44	11.43	15300	12600	0.18	3303 A-2ZTN9/MT33
17	47	22.2	19.44	11.43	15300	12600	0.18	3303 ATN9
17	47	22.2	19.44	11.43		9900	0.18	3303 A-2RS1
17	47	22.2	19.44	11.43		9900	0.18	3303 A-2RS1TN9/MT33
20	47	20.6	18.36	11.61	14400	12600	0.16	3204 A
20	47	20.6	18.36	11.61	14400	12600	0.16	3204 A-2Z
20	47	20.6	18.36	11.61	14400	12600	0.16	3204 A-2ZTN9/MT33
20	47	20.6	18.36	11.61	14400	12600	0.16	3204 ATN9
20	47	20.6	18.36	11.61		9000	0.16	3204 A-2RS1
20	47	20.6	18.36	11.61		9000	0.16	3204 A-2RS1TN9/MT33
20	52	22.2	22.05	14.04	11700	11700	0.22	3304 A
20	52	22.2	22.05	14.04	11700	11700	0.22	3304 A-2Z
20	52	22.2	22.05	14.04	11700	11700	0.22	3304 A-2ZTN9/MT33
20	52	22.2	22.05	14.04	11700	11700	0.22	3304 ATN9
20	52	22.2	22.05	14.04		8100	0.22	3304 A-2RS1
20	52	22.2	22.05	14.04		8100	0.22	3304 A-2RS1TN9/MT33
25	52	20.6	19.8	13.77	10800	10800	0.18	3205 A
25	52	20.6	19.8	13.77	10800	10800	0.18	3205 A-2Z
25	52	20.6	19.8	13.77	10800	10800	0.18	3205 A-2ZTN9/MT33
25	52	20.6	19.8	13.77		7650	0.18	3205 A-2RS1
25	52	20.6	19.8	13.77		7650	0.18	3205 A-2RS1TN9/MT33
25	62	25.4	29.25	19.8	9900	9900	0.35	3305 A
25	62	25.4	29.25	19.8	9900	9900	0.35	3305 A-2Z
25	62	25.4	29.25	19.8	9900	9900	0.35	3305 A-2ZTN9/MT33
25	62	25.4	29.25	19.8	9900	9900	0.35	3305 ATN9
25	62	25.4	29.25	19.8		6750	0.35	3305 A-2RS1
25	62	25.4	29.25	19.8		6750	0.35	3305 A-2RS1TN9/MT33
30	42	10	5.5	5.4		7300	0.04	3806-2RS
30	62	23.8	27.45	19.8	9000	9000	0.29	3206 A
30	62	23.8	27.45	19.8	9000	9000	0.29	3206 A-2Z
30	62	23.8	27.45	19.8	9000	9000	0.29	3206 A-2ZTN9/MT33
30	62	23.8	27.45	19.8	9000	9000	0.29	3206 ATN9
30	62	23.8	27.45	19.8		6750	0.29	3206 A-2RS1
30	62	23.8	27.45	19.8		6750	0.29	3206 A-2RS1TN9/MT33
30	72	30.2	38.25	27	9000	8100	0.52	3306 A
30	72	30.2	38.25	27	9000	8100	0.52	3306 A-2Z
30	72	30.2	38.25	27	9000	8100	0.52	3306 A-2ZTN9/MT33
30	72	30.2	38.25	27	9000	8100	0.52	3306 ATN9
30	72	30.2	38.25	27		5670	0.52	3306 A-2RS1
30	72	30.2	38.25	27		5670	0.52	3306 A-2RS1TN9/MT33
35	72	27	36.45	27	8100	8100	0.44	3207 A
35	72	27	36.45	27	8100	8100	0.44	3207 A-2Z
35	72	27	36.45	27	8100	8100	0.44	3207 A-2ZTN9/MT33
35	72	27	36.45	27	8100	8100	0.44	3207 ATN9
35	72	27	36.45	27		5670	0.44	3207 A-2RS1
35	72	27	36.45	27		5670	0.44	3207 A-2RS1TN9/MT33
35	80	34.9	47.43	37.35	8100	7200	0.74	3307 DJ1
35	80	34.9	48.6	34.2	7650	7650	0.74	3307 A
35	80	34.9	48.6	34.2	7650	7650	0.74	3307 A-2Z
35	80	34.9	48.6	34.2	7650	7650	0.74	3307 A-2ZTN9/MT33
35	80	34.9	48.6	34.2	7650	7650	0.74	3307 ATN9
35	80	34.9	48.6	34.2		5400	0.74	3307 A-2RS1
35	80	34.9	48.6	34.2		5400	0.74	3307 A-2RS1TN9/MT33
40	80	30.2	43.2	32.85	8100	7200	0.57	3208 A
40	80	30.2	43.2	32.85	8100	7200	0.57	3208 A-2Z
40	80	30.2	43.2	32.85	8100	7200	0.57	3208 A-2ZTN9/MT33
40	80	30.2	43.2	32.85	8100	7200	0.57	3208 ATN9
40	80	30.2	43.2	32.85		5040	0.57	3208 A-2RS1
40	80	30.2	43.2	32.85		5040	0.57	3208 A-2RS1TN9/MT33
40	90	36.5	44.46	37.35	7200	6300	0.93	3308 DNRCBM
40	90	36.5	58.95	43.2	6750	6750	0.93	3308 A
40	90	36.5	58.95	43.2	6750	6750	0.93	3308 A-2Z
40	90	36.5	58.95	43.2	6750	6750	0.93	3308 A-2ZTN9/MT33
40	90	36.5	58.95	43.2	6750	6750	0.93	3308 ATN9
40	90	36.5	58.95	43.2		4500	0.93	3308 A-2RS1
40	90	36.5	58.95	43.2		4500	0.93	3308 A-2RS1TN9/MT33
40	90	36.5	62.01	51.3	7200	6300	0.93	3308 DMA
40	90	36.5	62.01	51.3	7200	6300	0.93	3308 DTN9
45	85	30.2	46.8	37.35	6750	6750	0.63	3209 A
45	85	30.2	46.8	37.35	6750	6750	0.63	3209 A-2Z
45	85	30.2	46.8	37.35	6750	6750	0.63	3209 A-2ZTN9/MT33
45	85	30.2	46.8	37.35	6750	6750	0.63	3209 ATN9
45	85	30.2	46.8	37.35		4770	0.63	3209 A-2RS1
45	85	30.2	46.8	37.35		4770	0.63	3209 A-2RS1TN9/MT33
45	100	39.7	55.62	46.8	6750	5670	1.25	3309 DNRCBM
45	100	39.7	67.5	47.7	6750	6030	1.25	3309 A
45	100	39.7	67.5	47.7	6750	6030	1.25	3309 A-2Z
45	100	39.7	67.5	47.7	6750	6030	1.25	3309 ATN9
45	100	39.7	67.5	47.7		4320	1.25	3309 A-2RS1
45	100	39.7	71.37	62.55	6750	5670	1.25	3309 DMA
50	90	30.2	45.9	38.25	7200	6300	0.65	3210 A
50	90	30.2	45.9	38.25	7200	6300	0.65	3210 A-2Z
50	90	30.2	45.9	38.25	7200	6300	0.65	3210 A-2ZTN9/MT33
50	90	30.2	45.9	38.25	7200	6300	0.65	3210 ATN9
50	90	30.2	45.9	38.25		4320	0.65	3210 A-2RS1
50	90	30.2	45.9	38.25		4320	0.65	3210 A-2RS1TN9/MT33
50	110	44.4	73.71	62.55	6030	5040	1.95	3310 DNRCBM
50	110	44.4	84.24	76.5	6030	5040	1.95	3310 DMA
50	110	44.4	85.5	62.55	5400	5400	1.95	3310 A
50	110	44.4	85.5	62.55	5400	5400	1.95	3310 A-2Z
50	110	44.4	85.5	62.55	5400	5400	1.95	3310 ATN9
50	110	44.4	85.5	62.55		3870	1.95	3310 A-2RS1
55	100	33.3	54.9	46.8	5670	5670	0.91	3211 A
55	100	33.3	54.9	46.8	5670	5670	0.91	3211 A-2Z
55	100	33.3	54.9	46.8	5670	5670	0.91	3211 ATN9
55	100	33.3	54.9	46.8		4050	0.91	3211 A-2RS1
55	120	49.2	86.04	74.7	5400	4770	2.65	3311 DNRCBM
55	120	49.2	99.9	90	5400	4500	2.65	3311 DMA
55	120	49.2	100.8	73.35	5400	4770	2.65	3311 A
55	120	49.2	100.8	73.35	5400	4770	2.65	3311 A-2Z
55	120	49.2	100.8	73.35	5400	4770	2.65	3311 ATN9
55	120	49.2	100.8	73.35		3420	2.65	3311 A-2RS1
60	110	36.5	67.5	57.6	5040	5040	1.2	3212 A
60	110	36.5	67.5	57.6	5040	5040	1.2	3212 A-2Z
60	110	36.5	67.5	57.6	5040	5040	1.2	3212 ATN9
60	110	36.5	67.5	57.6		3600	1.2	3212 A-2RS1
60	110	36.5	67.5	57.6		3600	1.2	3212 A-2RS1TN9/MT33
60	130	54	114.3	85.5	5040	4500	2.8	3312 A
60	130	54	114.3	85.5	5040	4500	2.8	3312 A-2Z
65	120	38.1	72.54	66.15	5040	4320	1.75	3213 A
65	120	38.1	72.54	66.15	5040	4320	1.75	3213 A-2Z
65	120	38.1	72.54	66.15		3240	1.75	3213 A-2RS1
65	140	58.7	124.2	109.8	4770	4050	4.1	3313 DNRCBM
65	140	58.7	131.4	99	4770	4050	4.1	3313 A
65	140	58.7	131.4	99	4770	4050	4.1	3313 A-2Z
70	125	39.7	79.56	72	5040	4050	1.9	3214 A
70	125	39.7	79.56	72	5040	4050	1.9	3214 A-2Z
70	150	63.5	146.7	112.5	4500	3870	5.05	3314 A
70	150	63.5	146.7	112.5	4500	3870	5.05	3314 A-2Z
75	130	41.3	86.04	79.2	4770	4050	2.1	3215 A
75	130	41.3	86.04	79.2	4770	4050	2.1	3215 A-2Z
75	160	68.3	158.4	126	4050	3600	5.6	3315 A
75	160	68.3	158.4	126	4050	3600	5.6	3315 A-2Z
80	140	44.4	95.4	85.5	4500	3870	2.65	3216 A
80	170	68.3	173.7	140.4	3870	3420	6.8	3316 A
85	150	49.2	111.6	99	4050	3420	3.4	3217 A
85	180	73	187.2	158.4	3600	3240	8.3	3317 A
90	160	52.4	117	108	3870	3240	4.15	3218 A
90	190	73	187.2	162	3420	3060	9.25	3318 A
95	170	55.6	143.1	131.4	3600	3060	5	3219 A
95	200	77.8	216	194.4	3240	2880	11	3319 A
100	180	60.3	160.2	149.4	3420	2880	6.1	3220 A
100	215	82.6	229.5	229.5	3060	2520	13.5	3320 A
110	200	69.8	190.8	190.8	3060	2520	8.8	3222 A
110	240	92.1	261.9	274.5	2700	2340	19	3322 A
120	190	66	163.8	208.8	3060	3240	7.08	305256 D
150	225	73	163.8	238.5	1530	1800	5.52	305286 D
150	230	70	182.7	256.5	2520	2700	10.6	305283 D
150	230	70	182.7	256.5	2520	2700	10.6	305283 DA
160	215	56	121.5	198	2520	2700	5.67	305608
160	215	56	121.5	198	2520	2700	5.45	305608 B
160	240	76	210.6	301.5	2340	2520	11.4	305183
170	260	84	252.9	364.5	2160	2340	16.8	305180
180	250	70	171	256.5	2160	2340	9.67	305288 DA
180	259.5	66	202.5	279	2160	2340	11	305262 D
190	269.5	66	243	373.5	1980	2160	11	305338 D
200	279.5	76	217.8	342	1710	2160	13.7	305428 D
200	280	80	217.8	342	1980	2160	15.9	305393
200	289.5	76	271.8	427.5	1620	1980	16.4	305263 D
200	289.5	76	271.8	427.5	1620	1980	16.4	305263 DA
220	309.5	76	280.8	468	1800	1800	17.7	305272 D
220	309.5	76	280.8	468	1800	1800	17.7	305272 DA
220	309.5	76	280.8	468	1800	1800	17.7	305272 DB
230	329.5	80	315.9	540	1710	1800	21.9	305264 D
260	369.5	92	357.3	639	1530	1530	30	305270 D
280	389.5	92	362.7	675	1440	1440	33.2	305269 D
