Product Description

Product Attributes

Type: Roller

Structure: Spherical

Applicable Industries: Machinery Repair Shops, Retail, Construction works

Brand Name: UKL

Model Number: 22310

Precision Rating: P0 P6 P5 P4 P2

Seals Type: opened

Number Of Row: Double Row

Product Name: Special Roller Bearing

Material: Chrome Steel

Application: Mining. Metallurgy. Agriculture. Chemical

Cage: Steel Cage.copper Cage.nylon Cage

Package: Single Box

Service: Guarantee

Feature: Low Noise. Long Life high

MOQ: 100 Pcs

Main Market: Global

Place Of Origin: Jiangsu, China, CHINA

Packaging & Delivery

Selling Units	:	piece
Package Type	:	The economic plastic tube and commericail package



Product Description

Products Description

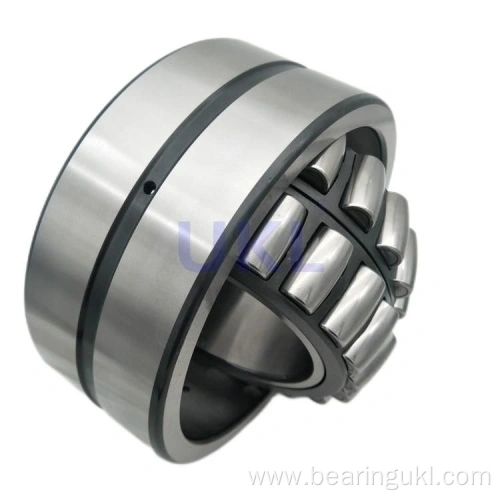

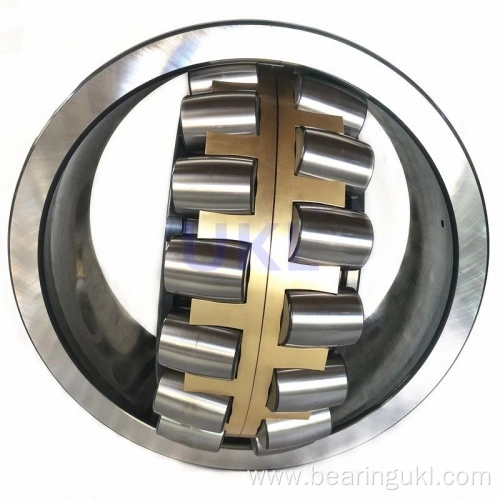

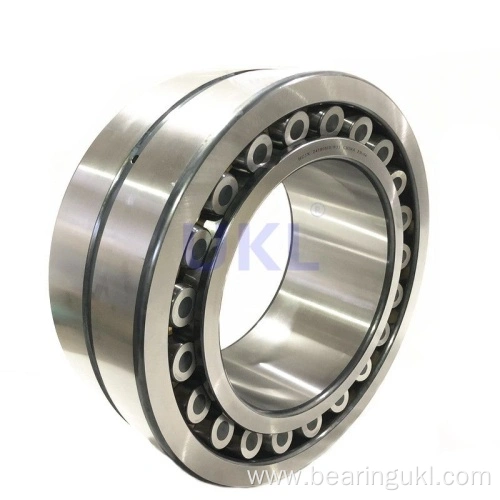

Product name	Spherical roller bearing
material	Chrome steel rings and rollers,plastic or steel or copper cage.
Quality Certificate	ISO9001:2008
Feature	Low noise, less vibration, high precision and long life
IDODW(mm)	9021573mm
Limiting Speed:	1900rpm (Grease lubricated);2400rpm (Oil lubricated);
Net weight(kg)	13.4KG
Brand name	UKL
Tolerance level	ABEC-1 (P0), ABEC-3 (P6)ABEC-5,ABEC-7,ABEC-9
Seals type	open
Precision rating	P0, P6
Antirust period	Bearings should normally be put under the protected condition then it is to be stored and preserved. The rustresisting period is two years.
Application	Mining operations, paper mills, oil fields, marine industry, steel, electrical, construction machinery, various kinds of professional machinery and heavy industry of all types.
Application

model list	d(mm)	D(mm)	B(mm)	Cr( N)	C0r(N)	m(kg)
22308	40	90	33	73500	90500	1.041
22309	45	100	36	108000	140000	1.387
22310	50	110	40	140800	170000	1.827
22311	55	120	43	170500	198000	2.299
22312	60	130	46	184800	225000	2.881
22313	65	140	48	206800	252000	3.494
22314	70	150	51	253000	315000	4.212
22315	75	160	55	288200	388000	5.225
22316	80	170	58	316800	405000	6.296
22317	85	180	60	338800	440000	7.36
22318	90	190	64	401500	542000	8.878
22319	95	200	67	423500	570000	10.38
22320	100	215	73	495000	668000	12.941
22322	110	240	80	599500	832000	17.85
22324	120	260	86	709500	992000	22.378
22326	130	280	93	794200	1140000	28.13
22328	140	300	102	907500	1340000	34.84
22330	150	320	108	1230000	1600000	43.6
22332	160	340	114	1380000	1790000	51.9
22334	170	360	120	1420000	2060000	60.75
22336	180	380	126	1470000	2270000	68.08
22338	190	400	132	1529000	2530000	83.22

Spherical Roller Bearings Series

Description:

Spherical roller bearings have two rows of rollers with a common sphere raceway in the outer ring and two inner ring raceways inclined at an angle to the Bearing axis.
This gives them an attractive combination of design features making them irreplaceable in many demanding applications. They are self-aligning and consequently insensitive to misalignment of the shaft relative to the housing and to shaft deflection or bending.

Materials:

1. Material of ring : GCr15,
2.Material of Cage: Steel, brass, polyamide, nylon
3.Material of Roller: chromium steel

Structure:

Internal Structure and Retainer Material Variation
C: Symmetrical roller, Stamped Steel retainer
CA: Symmetrical roller, one-pice brass cage
CTN1: Symmetrical roller, nylon cage

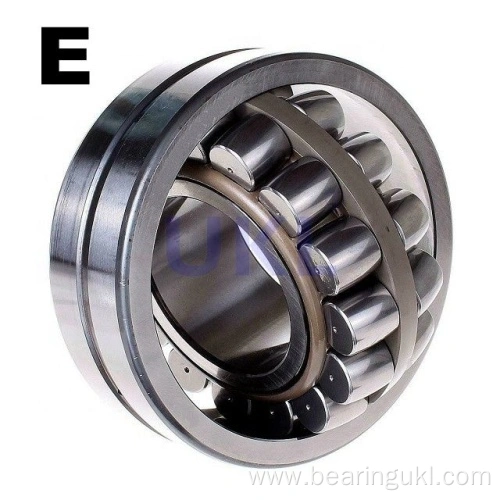

E: Third generation design. improved stress distribution; offer much longer service life than normal designs
Q: Bronze cage
MB: Symmetrical roller,Two-pice brass cage
EM: Symmetrical roller, Special alloy Integral cage.

External form change：

K: Tapered bore bearing,taper is 1:12
K30: Tapered bore bearing,taper is 1:30
N: A snap ring groove on the outer ring
W33: There are three lubrication groove and three lubrication holes in the outer ring
